X-ray & OPG Door Sets

Studform X-ray & Panoramic Dental (OPG) Door Sets are purpose designed for diagnostic imaging environments, combining radiation shielding with architectural flexibility and high-quality construction. Manufactured to meet project-specific shielding requirements, the range supports safe, compliant healthcare facilities while integrating seamlessly with Studform frames, hardware and accessories.

Available with lead-lined door leaves, frames, vision panels and compatible hardware, Studform X-ray & OPG Door Sets provide a coordinated solution for hospitals, medical imaging centres, dental clinics and specialist healthcare facilities where radiation protection is required.

X-Ray Room Doors

Part Number Description Dimensions
LD1041249P 10kg/m2 lined solid 44mm thickness (up to) 2400H x 620-920
LD1541249P 15kg/m2 lined solid 44mm thickness (up to) 2400H x 620-920
LD10412412P 10kg/m2 lined solid 44mm thickness (up to) 2400H x 920-1200
LD15412412P 15kg/m2 lined solid 44mm thickness (up to) 2400H x 920-1200



X-ray Door Alterations

Description Dimensions
VP (X-Ray Lead Glass Fitted) 200 x 200
VP (X-Ray Lead Glass Fitted) 200 x 600



X-ray Door Frames

Part Number Description Dimensions
SDF21LL44P 10kg/m2 lined X-Ray door frame  2100H x 400-1200
SDF24LL44P 10kg/m2 lined X-Ray door frame  2400H x 400-1200
DDF24LL44P 10kg/m2 lined X-Ray door frame 2400H x 1200-1800
SDF21LL45P 15kg/m2 lined X-Ray door frame 2100H x 400-1200
SDF24LL45P 15kg/m2 lined X-Ray door frame 2400H x 400-1200
DDF24LL45P 15kg/m2 lined X-Ray door frame 2400H x 1200-1800

*Custom sizes and higher level shielding available on request.

Ready to Specify X-Ray or OPG Doors for your next project?

Access specification tools or contact our Project team

Specify Now

Features of the X-Ray and OPG Door Range

Available with lead-lined door leaves, frames, vision panels and compatible hardware, Studform X-ray & Panoramic Dental (OPG) Door Sets provide a coordinated solution for hospitals, medical imaging centres, dental clinics and specialist healthcare facilities where radiation protection is required.

  • Solid core construction: Durable solid core door provide long-term strength, stability and everyday performance.
  • Lead-lined frame options: Available with 10kg/m2 or 15kg/m2 lead-lined steel door frames to suit project-specific radiation shielding requirements.
  • Lead glass vision panels: Optional lead glass vision panels allow safe observation while maintaining the required level of radiation protection.
  • Specification flexibility: Available in a range of sizes, finishes and compatible hardware options to suit project-specific functional and architectural requirements.
  • Coordinated door system: Designed to integrate with Studform door frames, hardware and accessories, supporting efficient specification, installation and long-term performance.

Studform also provides specialist project support, working with architects, builders and healthcare project teams to deliver coordinated door solutions tailored to the operational and shielding requirements of each facility.

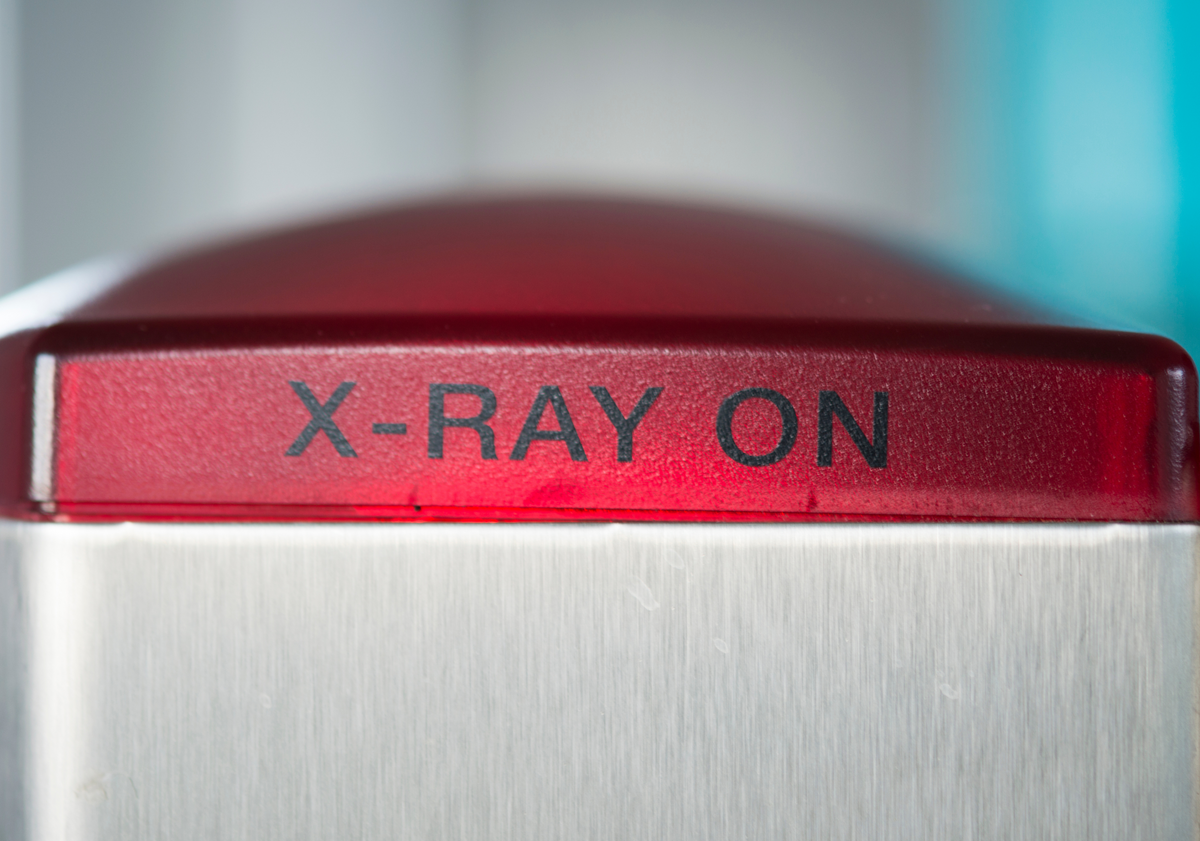

Features of the X-Ray and OPG Door Range
