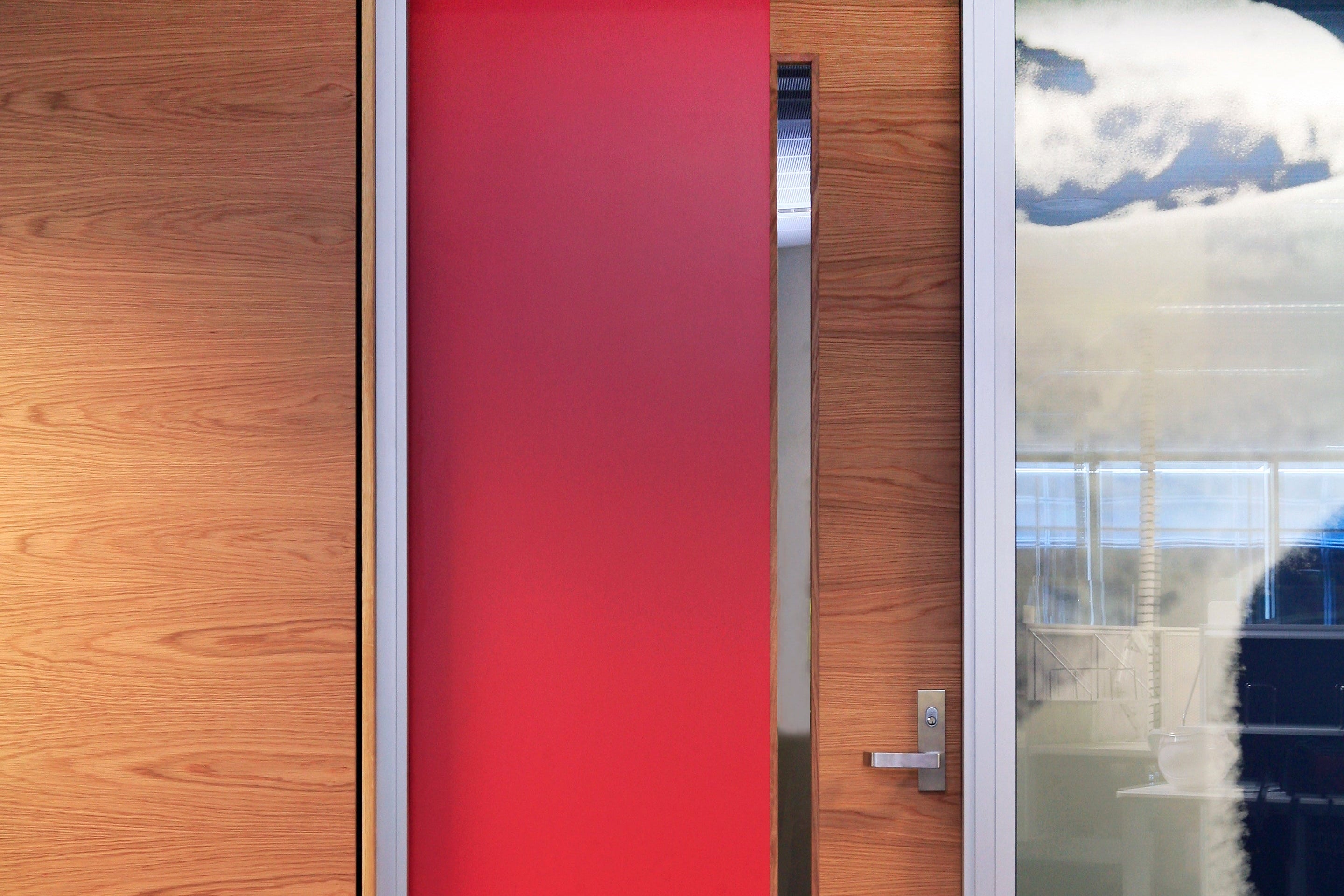

Studform wooden door with a red glass panel and a glass panel on the right in a commercial environment.
Studform wooden door with a red glass panel and a glass panel on the right in a commercial environment.
Studform wooden door with a red glass panel and a glass panel on the right in a commercial environment.

Integrated Acoustic Doors

Logo of Studform RW Acoustic Range

Studform's Integrated Acoustic Door and frame set combines a high-performance acoustic door with a purpose-designed frame to deliver a complete sound insulation system for partitioned offices, meeting rooms, healthcare, education and other noise-sensitive environments. Designed to integrate seamlessly with the Korporate Partition Series, the set provides a coordinated wall and door solution that balances acoustic performance, architectural design and long-term durability.

Designed and manufactured in accordance with ISO 717-1:2020 Acoustics – Rating of Sound Insulation in Buildings and of Building Elements, the Integrated Acoustic Door Set delivers an Rw41 acoustic rating, providing a trusted solution for applications where speech privacy and noise control are critical.

Rw41 Acoustic Door Set Range

Order Code Description Dimensions
RW41KAC2492
 Rw41 Acoustic Door Set with Aluminium frame back filled and seals 45 x 2400 x 920
RW41KAC2412
 Rw41 Acoustic Door Set with Aluminium frame back filled and seals 45 x 2400 x 1200

*Custom sizing readily available.

Ready to Specify Acoustic Doors sets for your next project?

Access specification tools or contact our Project team

Specify Now

Features of Acoustic Door Sets

Studform's High Performance Acoustic Doors deliver lab-tested sound reduction without compromising on design – minimal noise, minimal weight, maximum style.

  • Lab-tested performance: Independently tested by the University of Adelaide, NATA-approved to ISO 10140-2:2021 acoustics standards.
  • High Rw ratings: Achieves Rw 30 through to the low 50s across the range, tailored to project requirements.
  • Lightweight Acoulite core options: Cuts up to 17kg from a 2700mm partition door compared to traditional solid-core doors.
  • Advanced X3 seal technology: Bottom and side seals expand to close gaps and further reduce noise transfer.
  • Custom manufacturing & finishes: Bespoke sizing and configurations, with a wide range of exotic and Australian veneers.
Features of Acoustic Door Sets

Specifying the Integrated Acoustic Doors on your next project?

Download the full technical brochure
