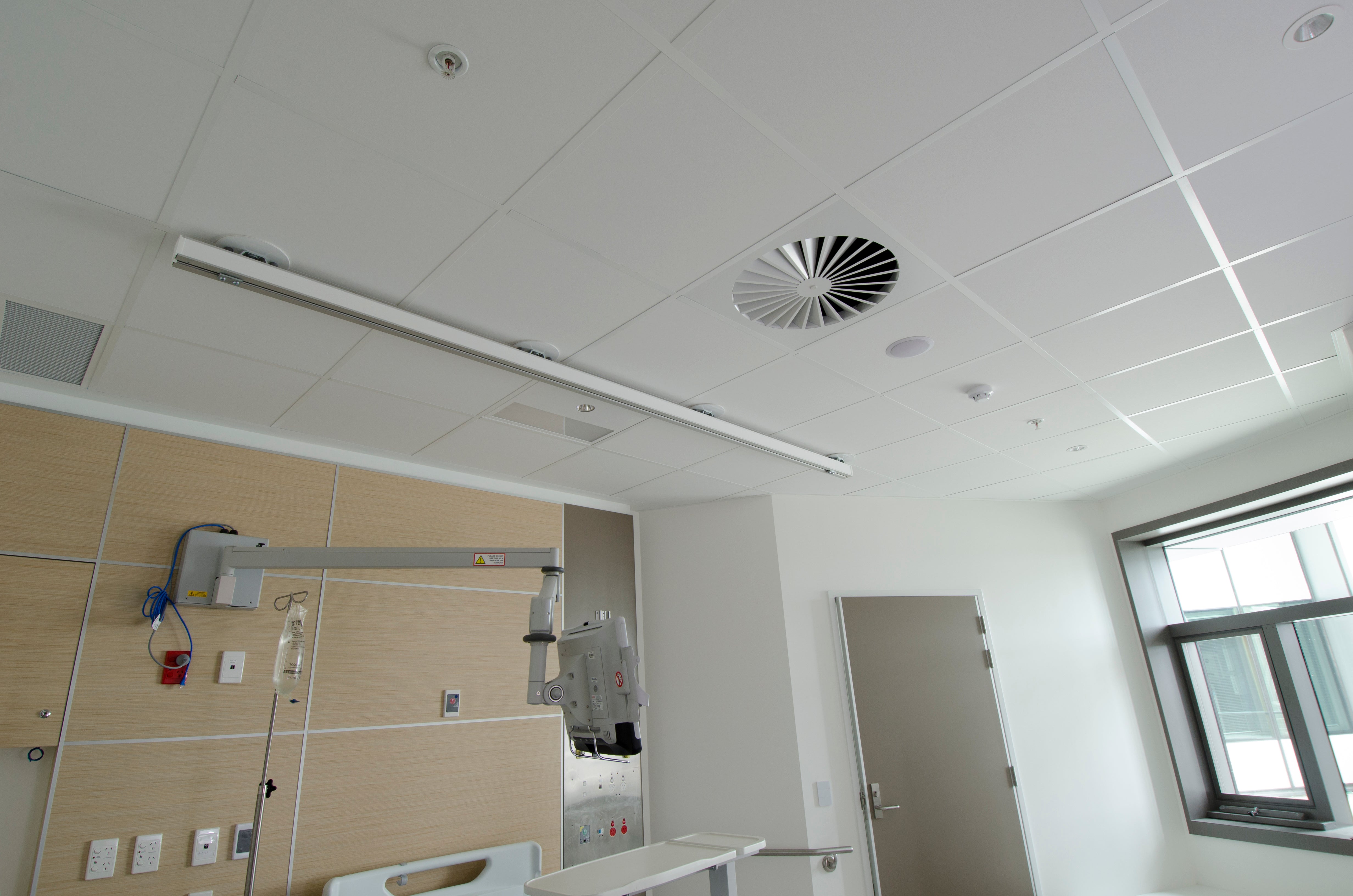

Seismic ceiling system installed in the Royal Adelaide Hospital with equipment and a window.

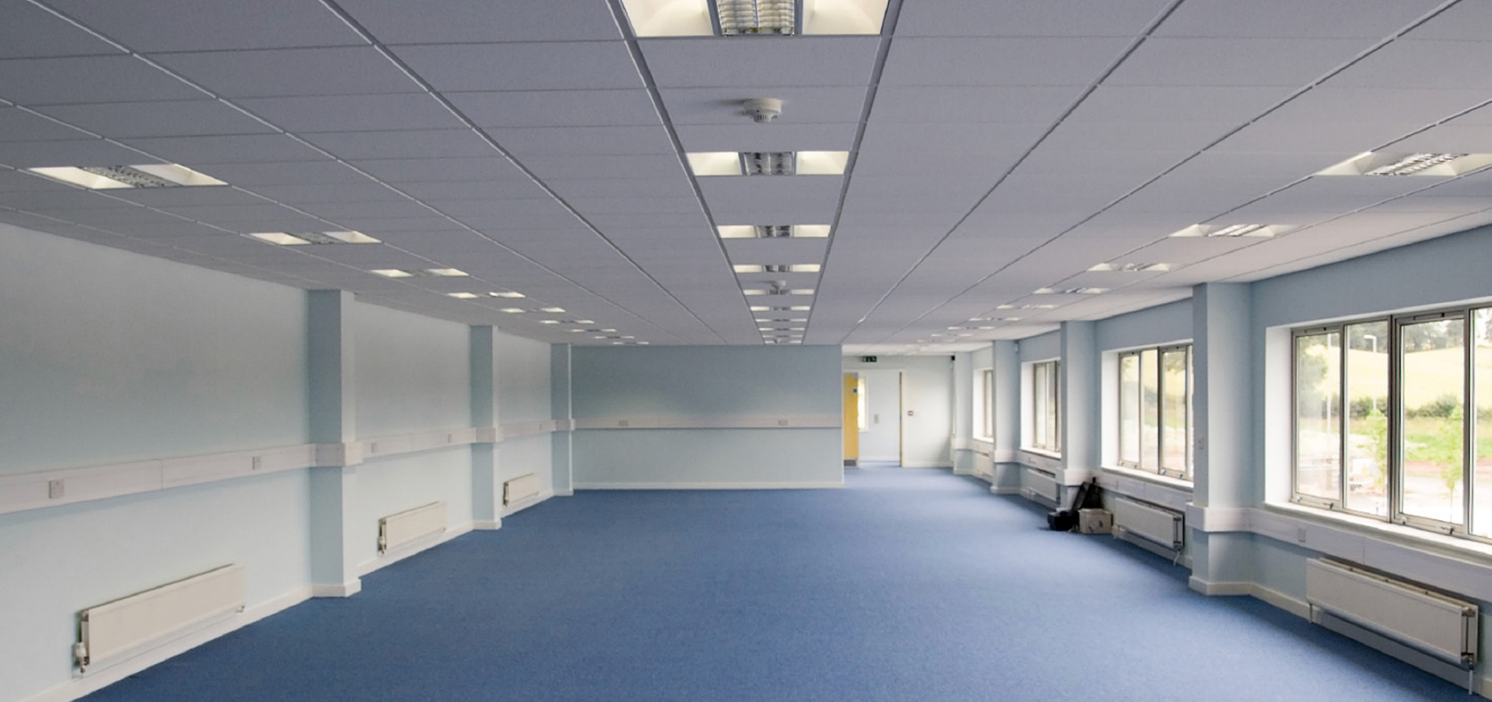

Large, empty room with blue carpet and white walls, featuring windows on one side.

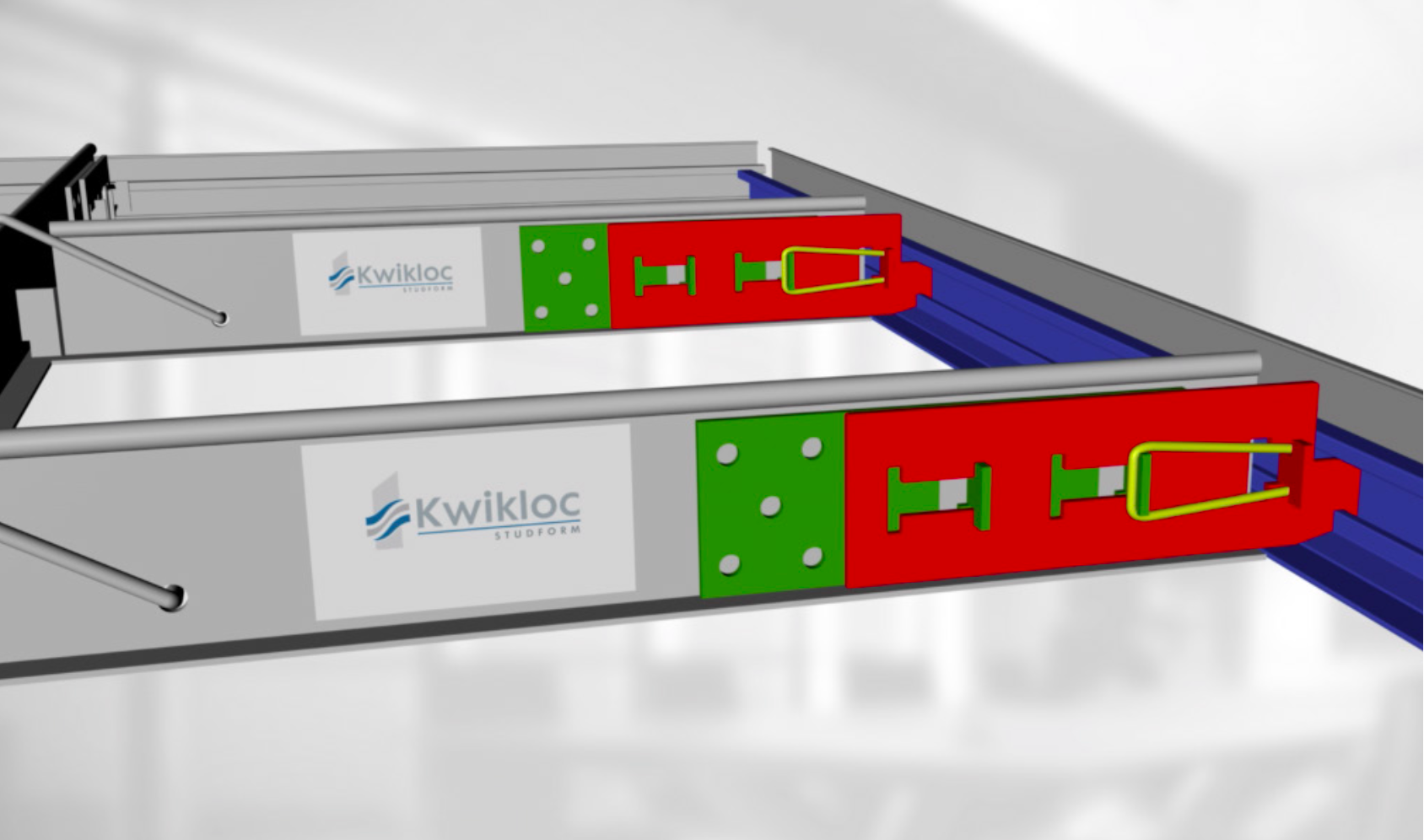

Kwikloc Seismic Ceiling Grid

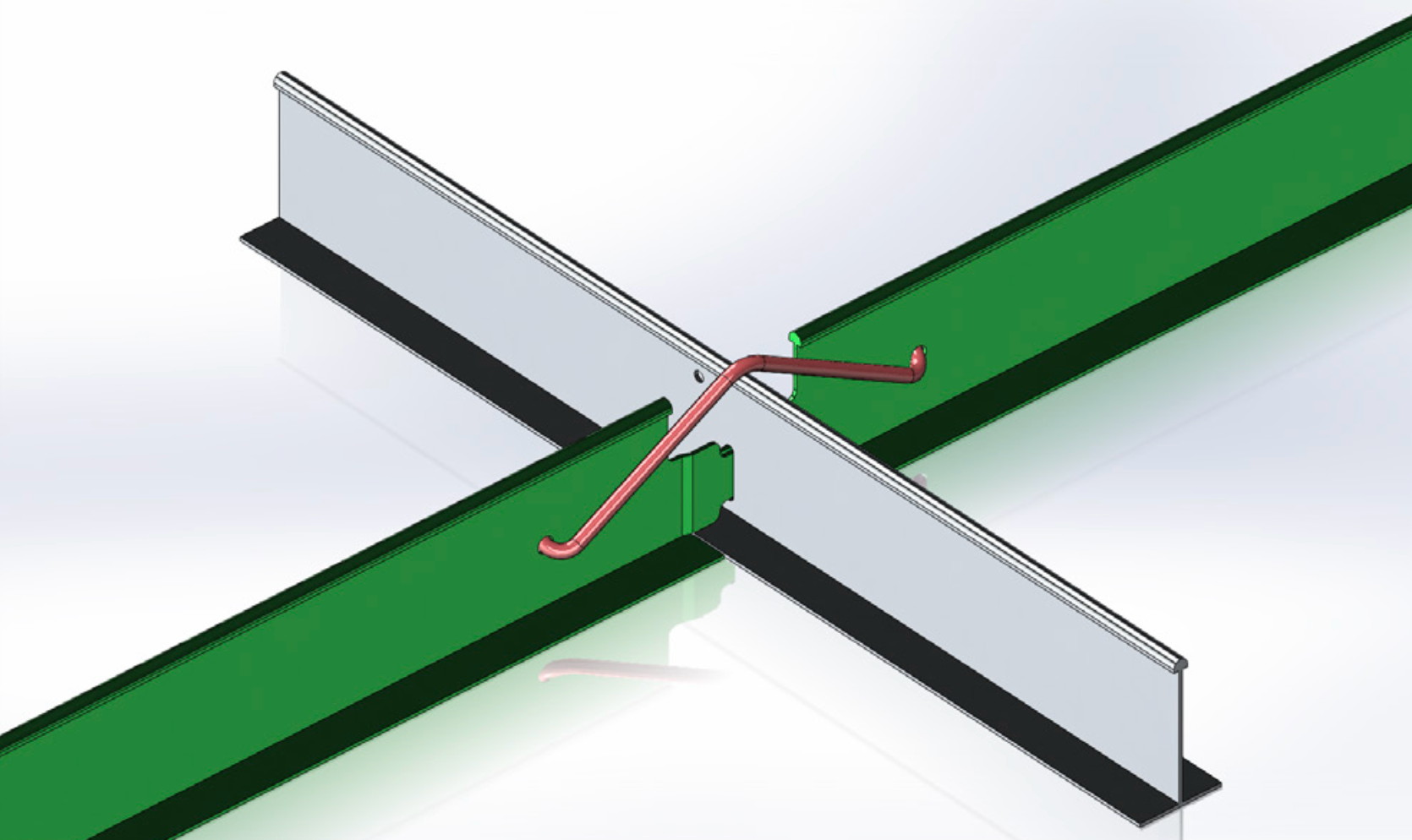

Kwikloc Seismic Ceiling Grid
Seismic ceiling system installed in the Royal Adelaide Hospital with equipment and a window.
Large, empty room with blue carpet and white walls, featuring windows on one side.
Kwikloc Seismic Ceiling Grid
Kwikloc Seismic Ceiling Grid
Seismic ceiling system installed in the Royal Adelaide Hospital with equipment and a window.
Large, empty room with blue carpet and white walls, featuring windows on one side.
Kwikloc Seismic Ceiling Grid
Kwikloc Seismic Ceiling Grid

Kwikloc® Seismic Suspension Grid

Our patented Australian-made 24mm and 15mm premium face seismic ceiling system engineered for IL2–IL4 buildings and environments where continuity of service matters, designed to meet Australian and New Zealand seismic standards.

Featuring a flat-grid design, nesting connection detail and non-corrosive materials, Kwikloc® supports cleaner, more serviceable ceiling spaces while reducing the air and dust pathways often created by conventional joggled systems, helping support hygiene-sensitive* environments and long-term building performance.

Meeting AS/NZS 2785:2020, AS/NZS 1170.5 and AS 1170.4, the Kwikloc® ceiling system is specifically designed for healthcare, emergency, defence and specialist applications.

*When paired with selected ceiling tiles

Kwikloc® Seismic Ceiling Grid Components

Available in 24mm Corporate and 15mm Premium including natural anodised and custom colour options.


 Part Number Description Length Pieces / Pack

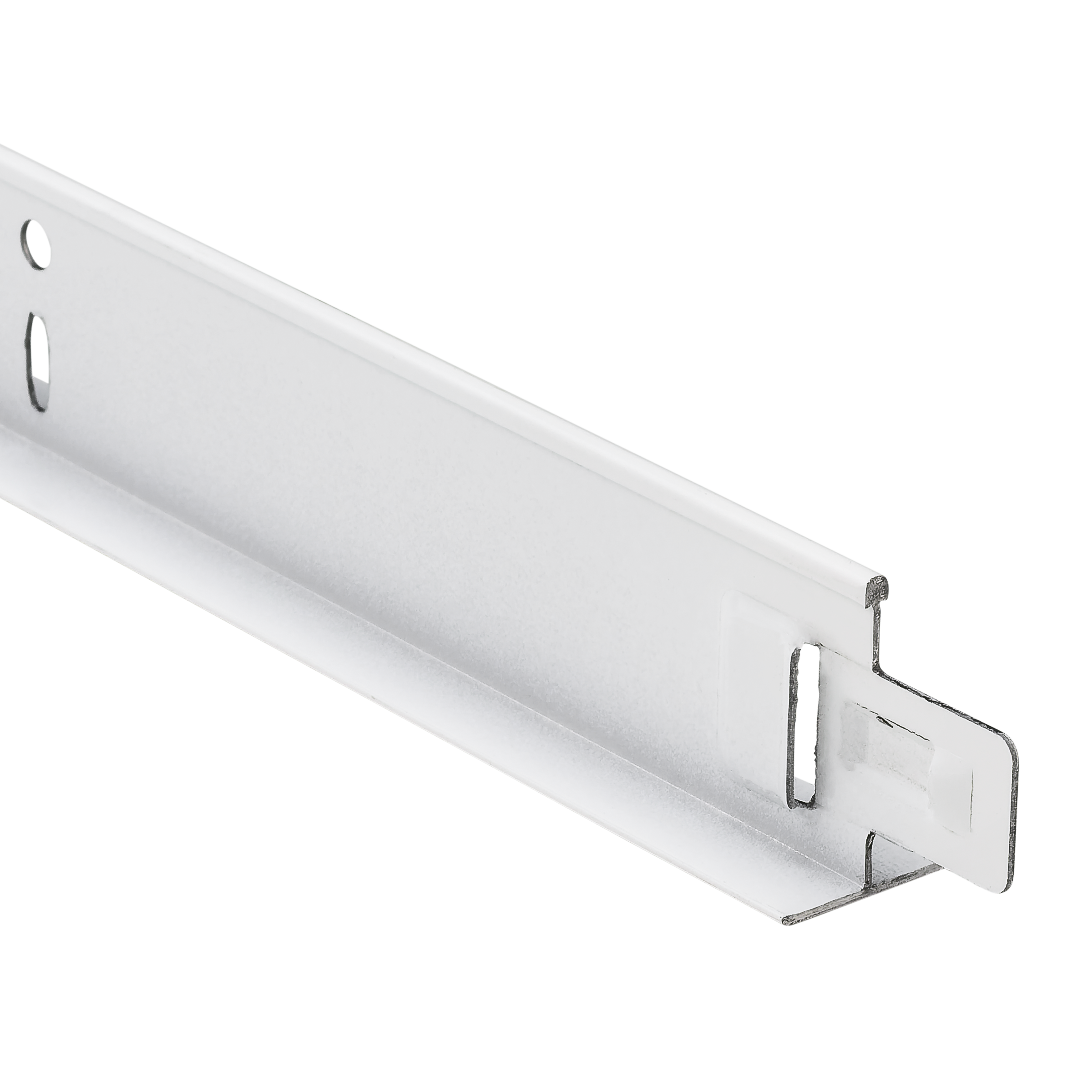

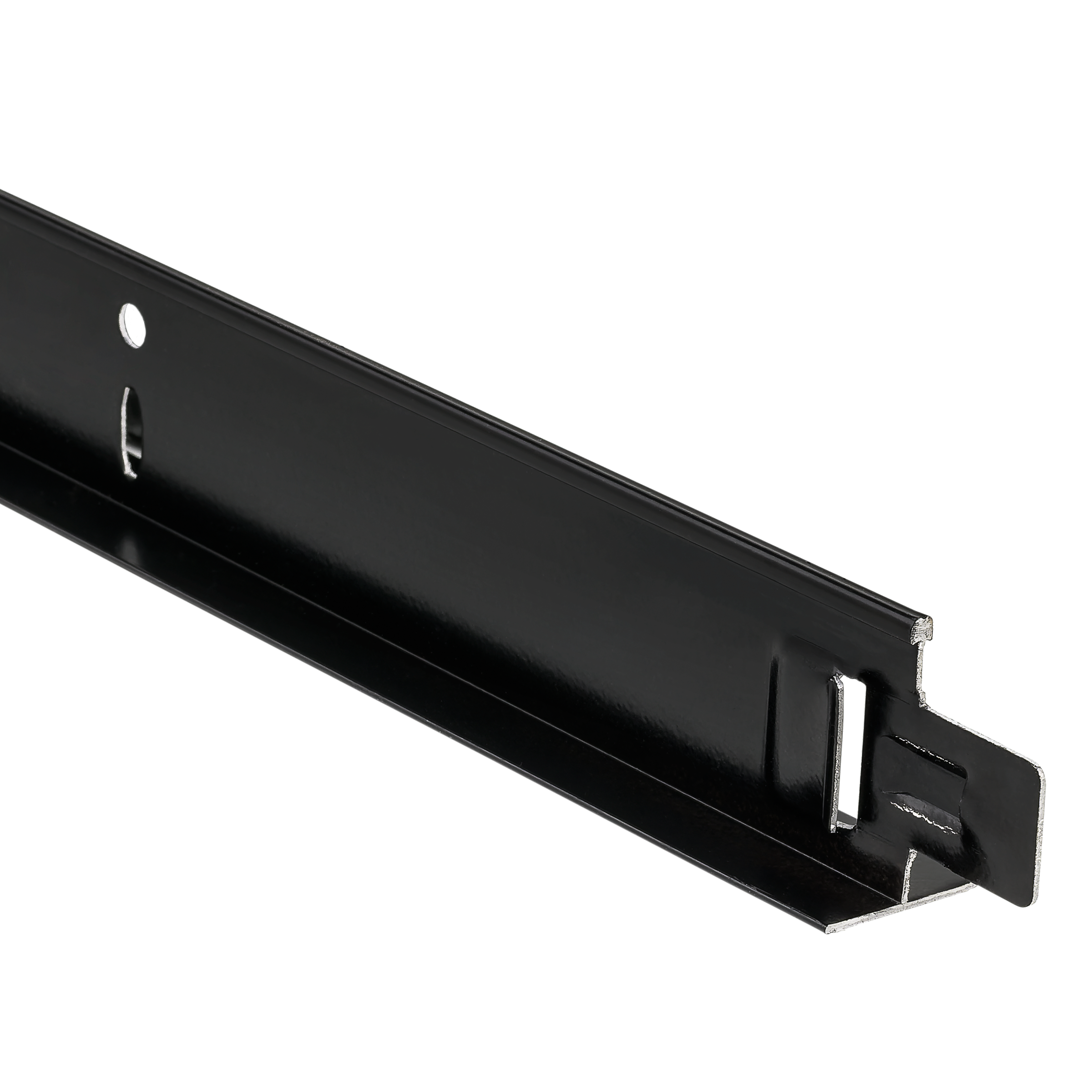

KL3600S Kwikloc® Seismic Main Tee 3600 20

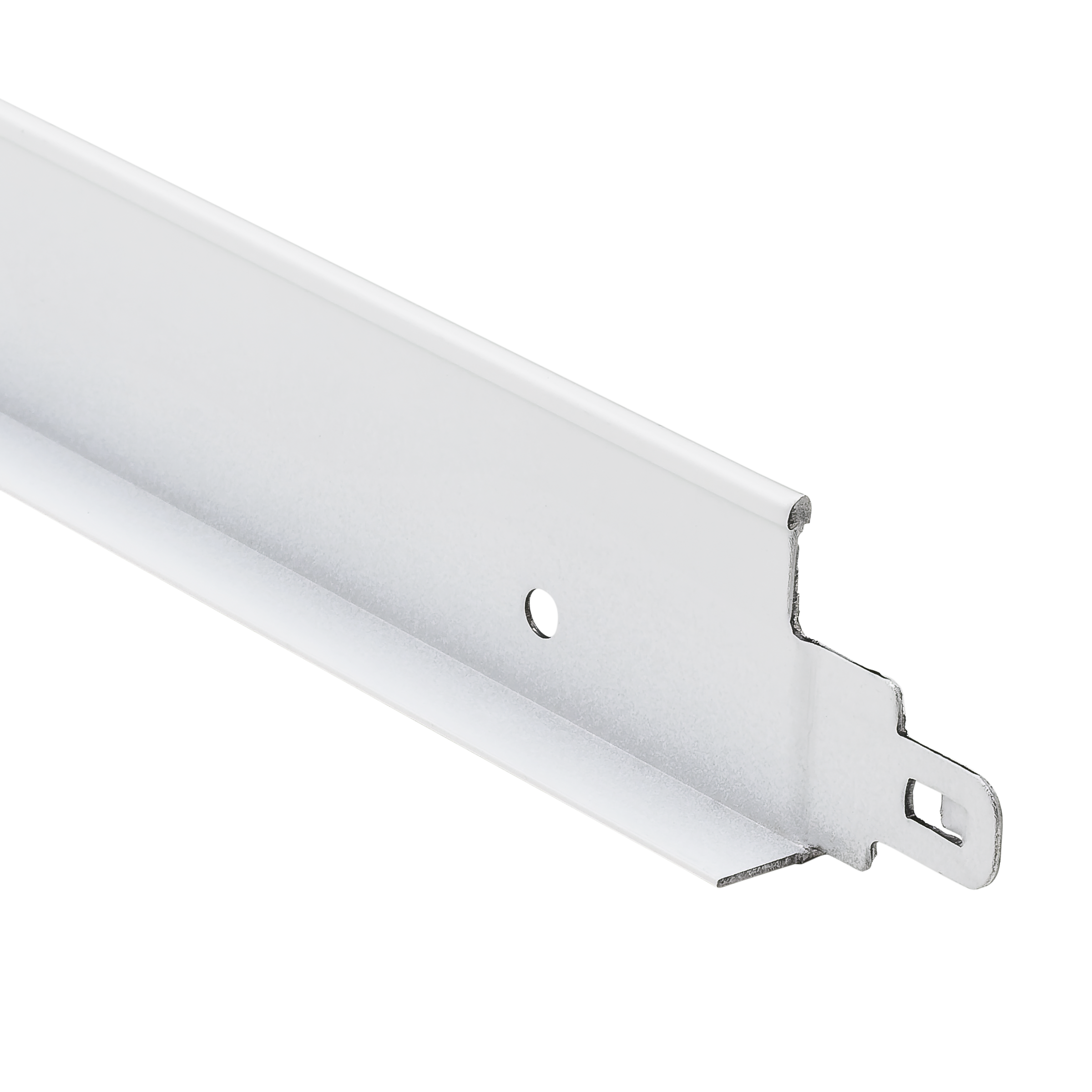

KL1200S Kwikloc® Seismic 1200 Cross Tee 1200 60

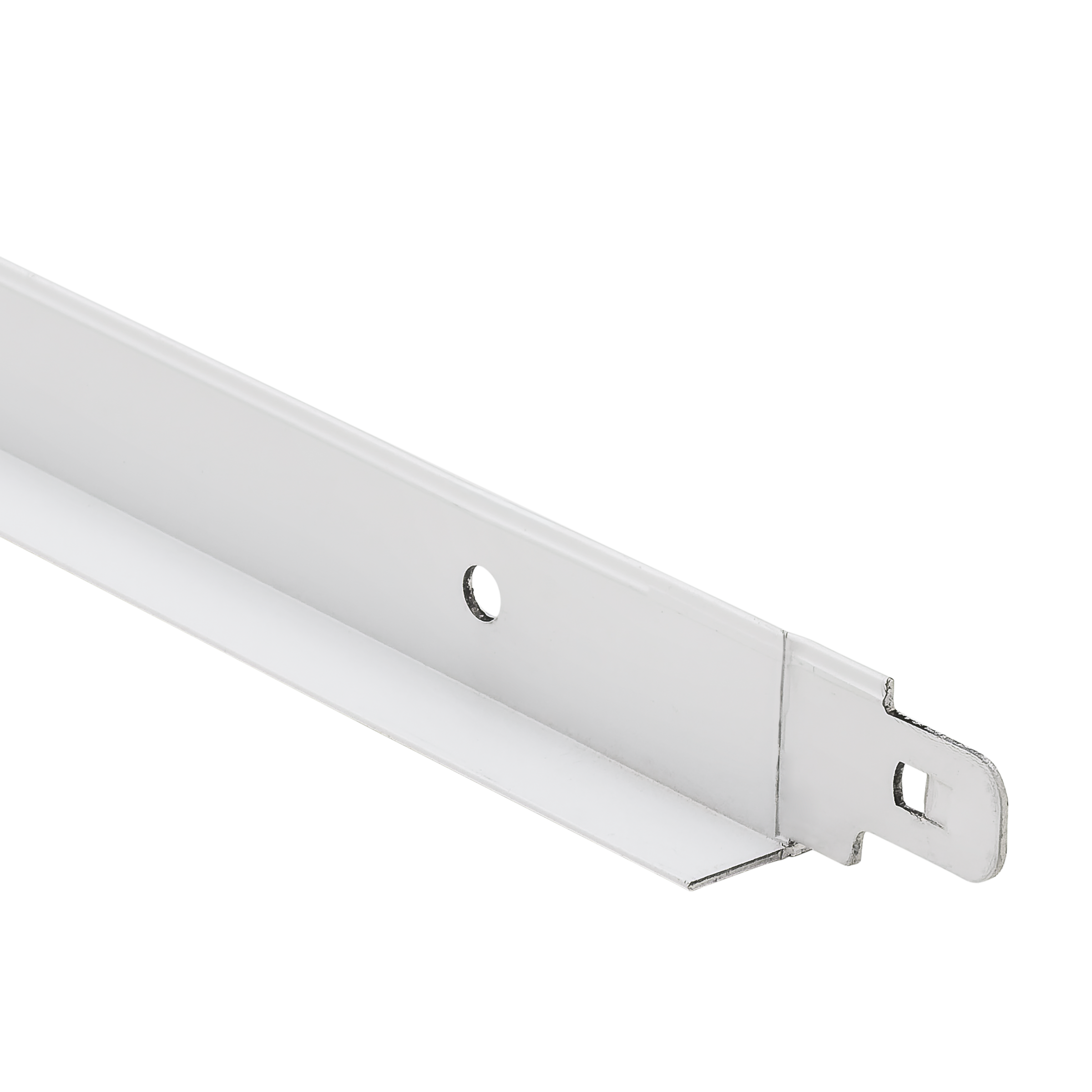

KL600S Kwikloc® Seismic 600 Cross Tee 600 60



Kwikloc® Seismic 32mm Mitred Top Hat Grid Components


 Part Number Description Length
KLTH3600S Kwikloc® Seismic Mitred Top Hat Main Tee 3600
KLTH1200S Kwikloc® Seismic Mitred Top Hat 1200 Cross Tee 1200

KLTH4050S Kwikloc® Seismic Mitred Top Hat 4050 Main Tee 4050

KLTH1350S Kwikloc® Seismic Mitred Top Hat 1350 Cross Tee 1350

KLTH4500S Kwikloc® Seismic Mitred Top Hat 4500 Main Tee 4500

KLTH1500S Kwikloc® Seismic Mitred Top Hat 1500 Cross Tee 1500



Wall Angles & Bulkhead


 Part Number Description Length Pieces / Pack

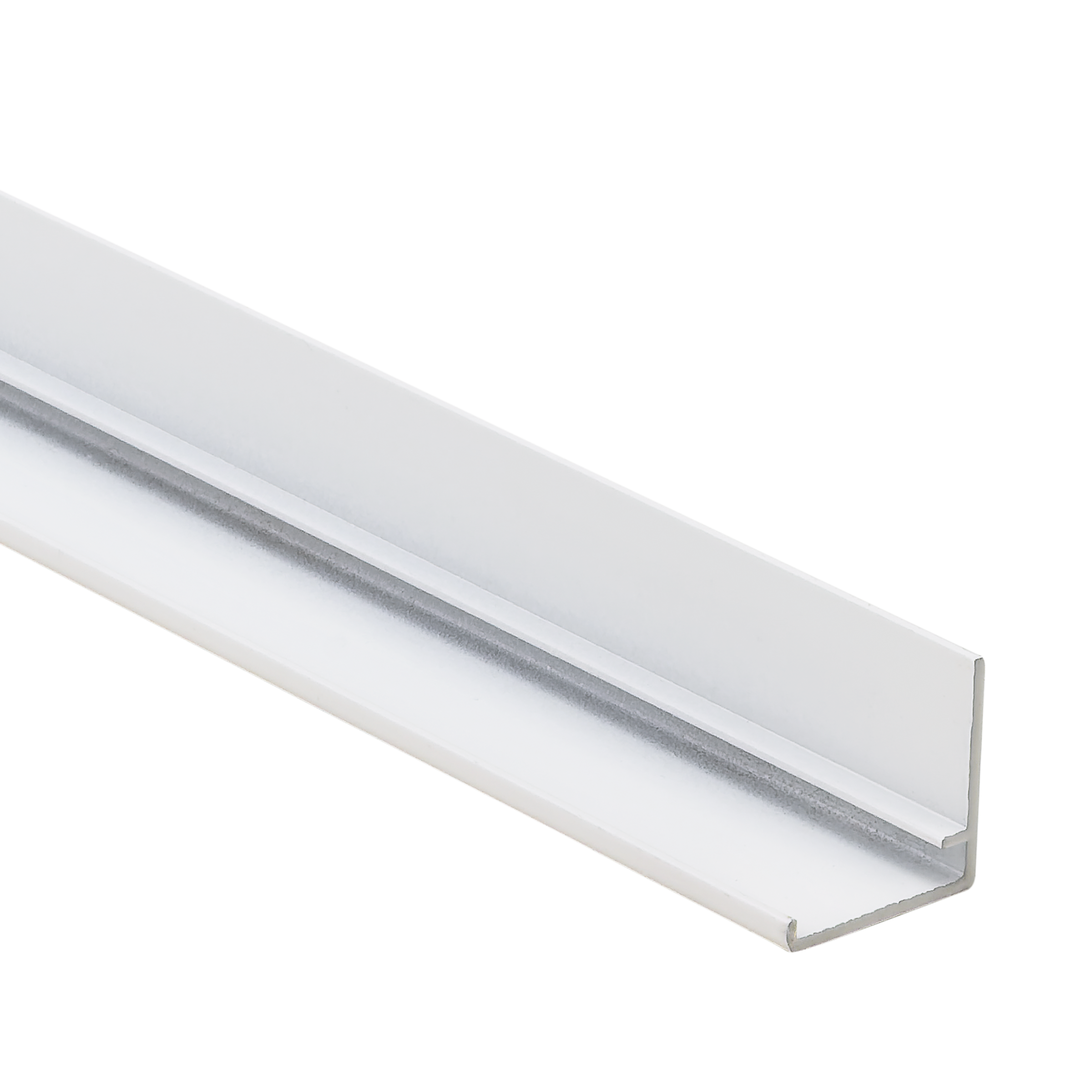

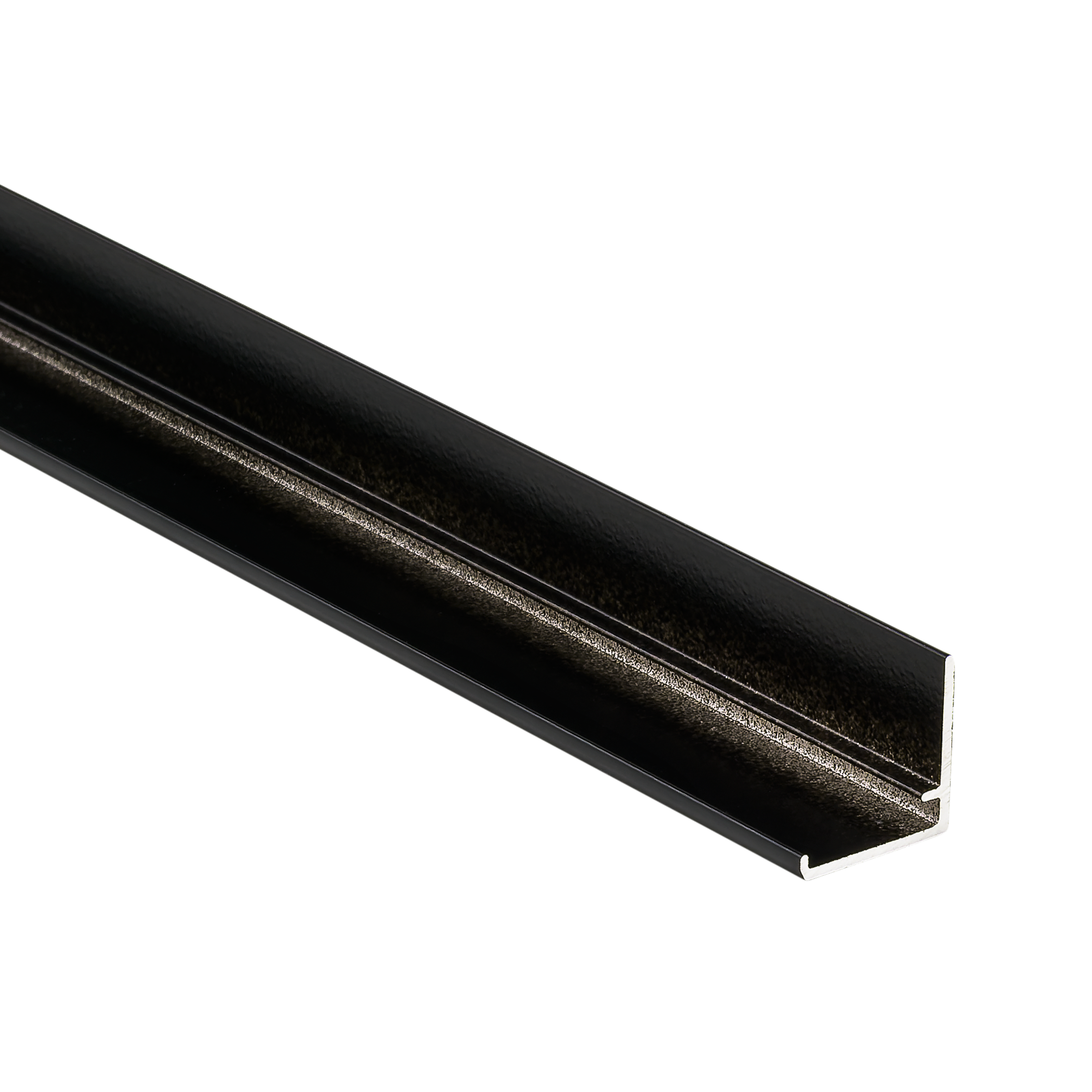

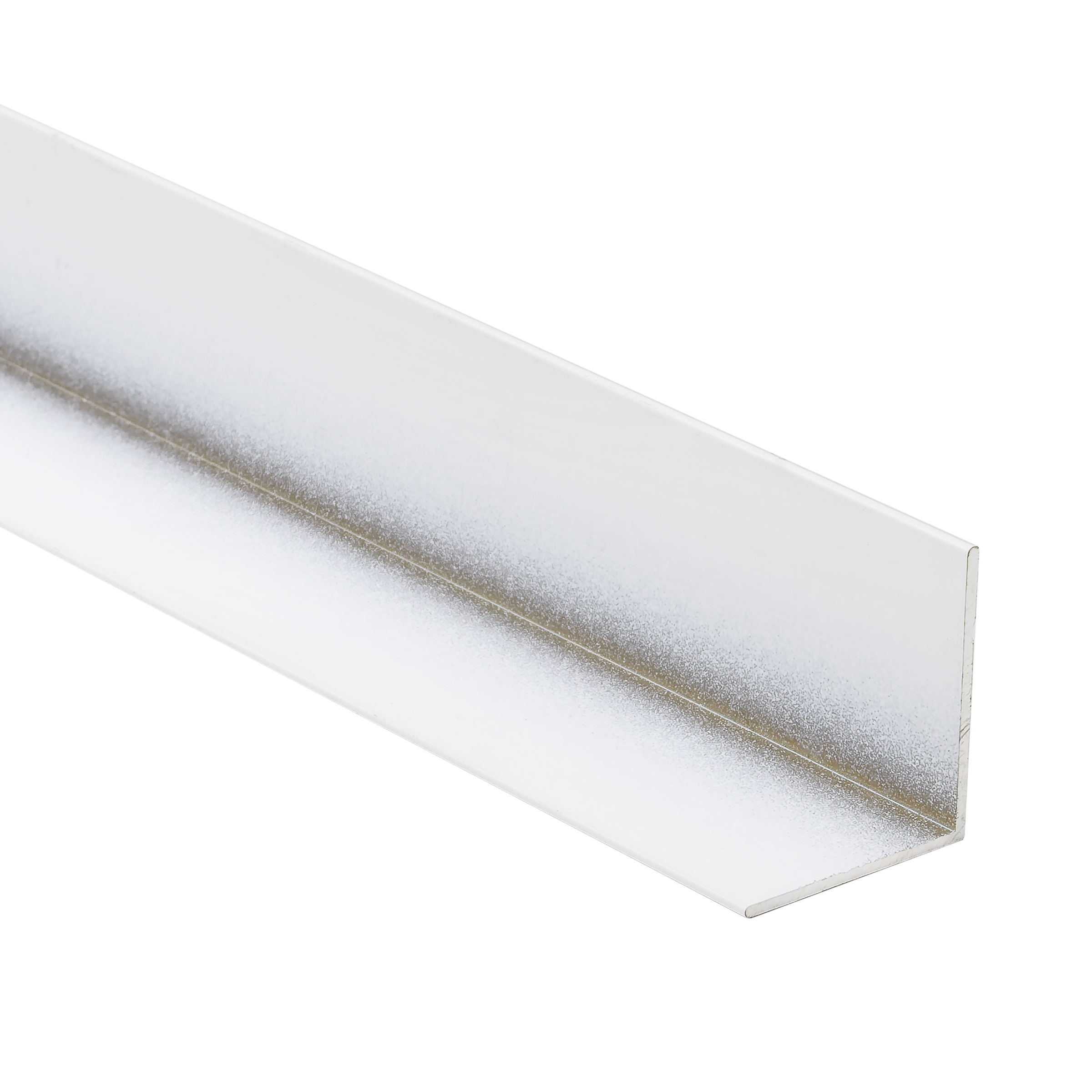

ASTS3600 Kwikloc® Seismic Fixed Side Wall Angle 3600 10
ASTSA/B3600 Kwikloc® Seismic 2 Part A/B Floating Wall Angle 3600 8

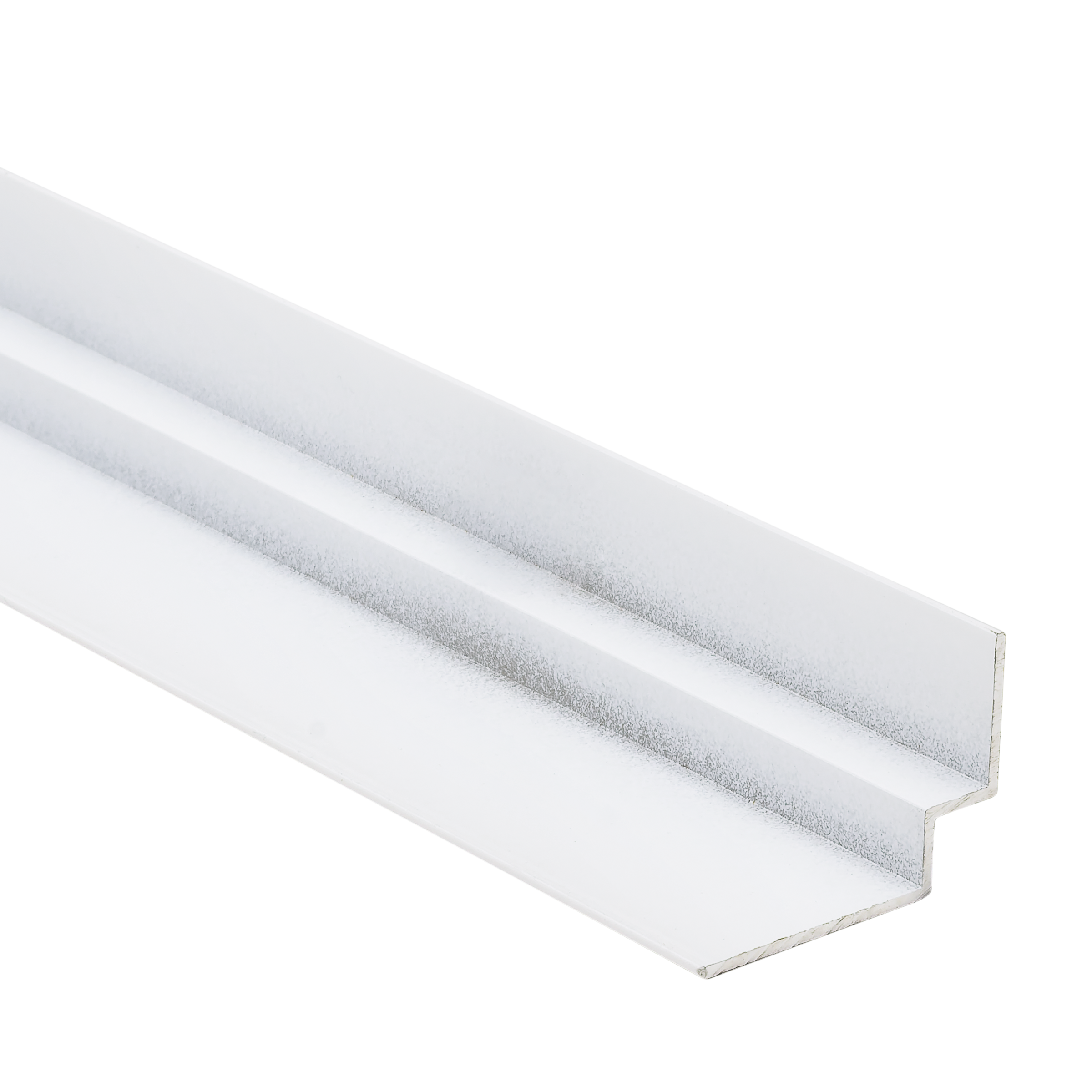

ASLS3600 Kwikloc® Seismic Fixed Shadowline Wall Angle 3600 10
ASLSA/B3600 Kwikloc® Seismic 2-Part Floating Shadowline Wall Angle 3600 8

ASTS3600XL Kwikloc® 32mm Seismic Extra Ribbed Wall Angle 3600 10

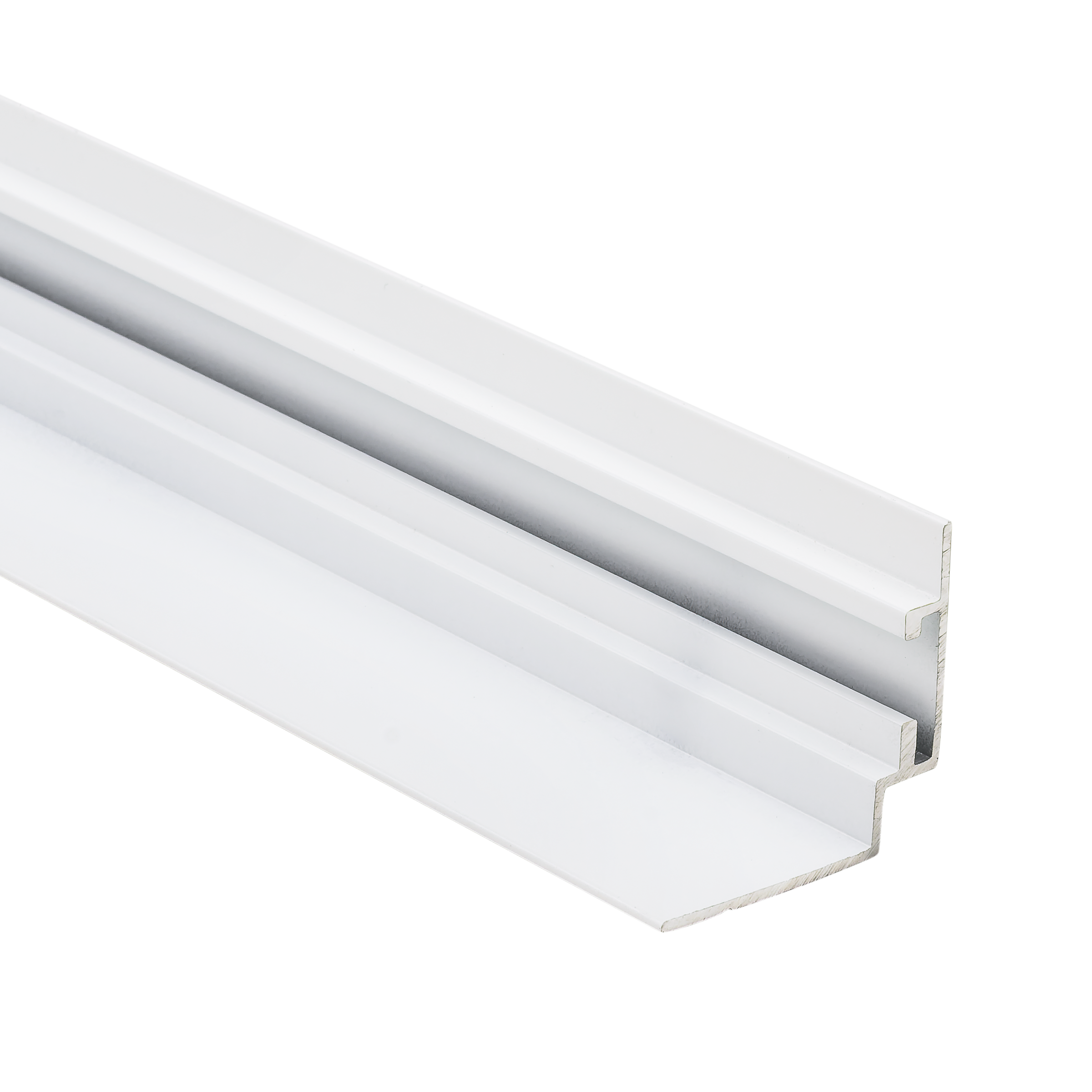

ASLS3600XL Kwikloc® 32mm Seismic Extra Ribbed Shadowline Wall Angle 3600 10

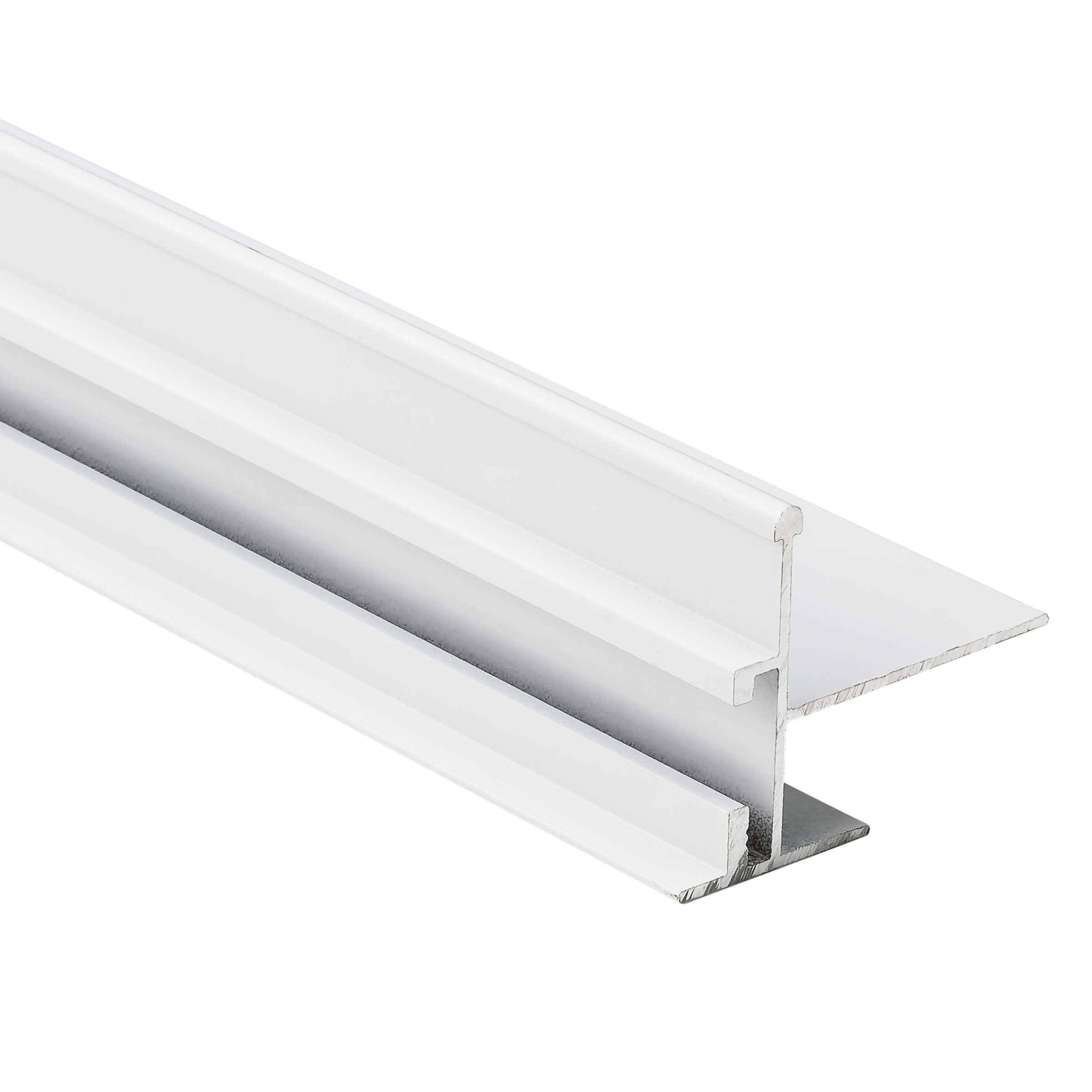

KLPLSEI3600 Kwikloc® Plaster to Grid Trim 3600 12



Accessories


 Part Number Description Length Pieces / Pack
2424-4  Spring Suspension Hanger 4mm 100
A90S Seismic Fixed Side Right Angle Bracket 100
A93S Seismic Fixed Side Shadowline Angle Bracket 100
KLSEI150 Kwikloc® Seismic 2 Part Floating Wall Angle Bracket
KLSEI175 Kwikloc® Seismic Cross Tee Clip
KLSEI85 Kwikloc® XL/Plaster to Grid Bracket
KLSEI85SL Kwikloc® XL/Plaster to Grid Bracket Slotted

KLGRD-10K Kwikloc® Gridlok Seismic Brace Connector

HUX6 Hillti Masonry Seismic Screw Bolt 6 x 55 100

RIVET 5/32 Aluminium Rivet  500
SR2.5 2.5mm Galv Suspension Rod 3600 100
SR4.0 4.0mm Galv Suspension Rod 3600 100

TSO55 Iconns Masonry Seismic Suspension Toggle
100



Ready to Specify Kwikloc® Seismic for your next project?

Access specification tools or contact our Project team

Specify Now

Features of the Kwikloc® Seismic System

Kwikloc® Seismic Ceiling Systems are engineered for environments
where seismic performance, continuity of service and long-term
reliability are critical. Combining patented seismic capability with a
modular flat-grid design, the system delivers clean ceiling lines with
minimal bracing requirements, creating greater serviceable cavity space.

  • All aluminium grid: Lightweight, corrosion-resistant aluminium grid provides long-term durability and dimensional stability in demanding environments.
  • High strength suspension: Supports large open ceiling cavity areas of up to 81 m², with independently verified seismic performance to 3G lateral acceleration and 100%
    vertical uplift.
  • Patented locking system: Featuring a positive locking grid and two-way seismic wall angle, providing secure component engagement while allowing controlled movement required
    for engineered seismic performance.
  • Fast Easy installation: Snap-fit locking system enables faster installation than conventional aluminium ceiling systems, helping reduce labour, administration and project delivery time.

Studform also offers specialist design support, drawing on decades of experience coordinating ceiling systems, lighting and building services to help deliver compliant, efficient and buildable project outcomes.
