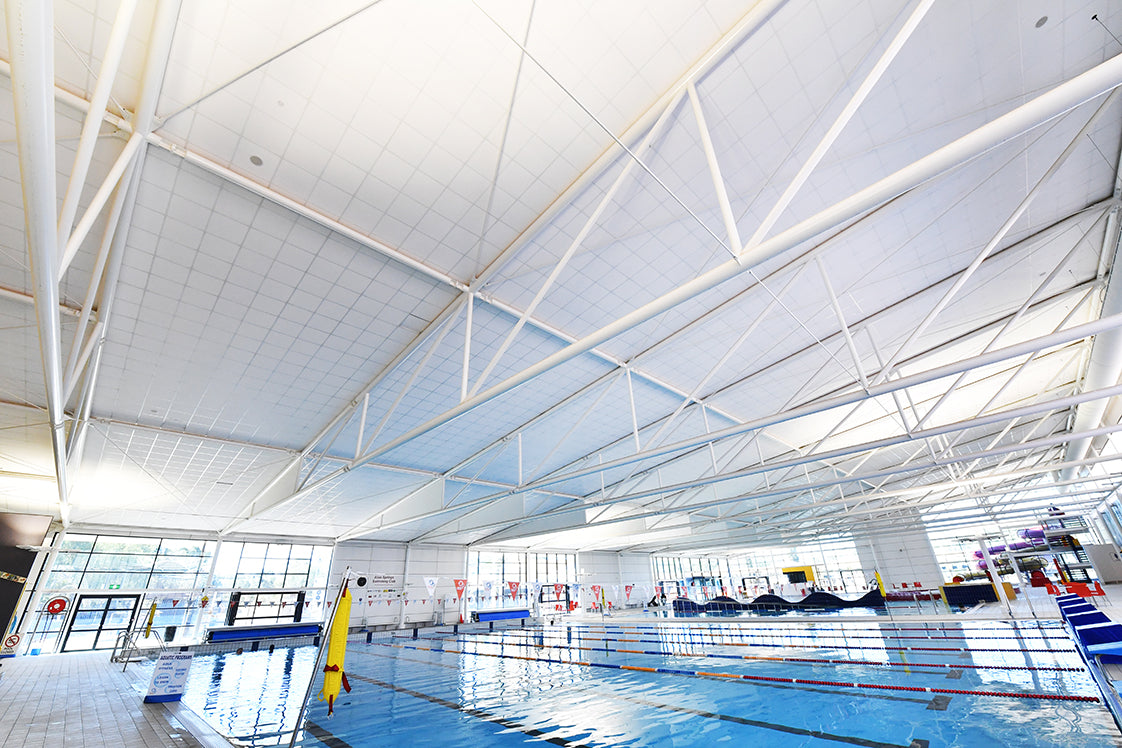

Large indoor swimming pool with white ceiling and large windows at the Alice Springs Aquatic Centre.
Large indoor swimming pool with white ceiling and large windows at the Alice Springs Aquatic Centre.
Large indoor swimming pool with white ceiling and large windows at the Alice Springs Aquatic Centre.

Kwikloc® Aquatic

Kwikloc® Aquatic is an Australian made all-aluminium ceiling system engineered for high humidity and corrosive environments where long-term durability, hygiene and architectural performance are critical. Purpose designed for aquatic facilities, MRI rooms and other harsh environments, the system combines a precision flat-grid design with corrosion-resistant, non-magnetic aluminium components to deliver reliable performance throughout the building's life.

Featuring marine-grade stainless steel fixings and closely nested tile connections, Kwikloc® Aquatic provides comprehensive corrosion control above and below the ceiling, helping reduce contaminant pathways while maintaining cleaner, more serviceable ceiling spaces and protecting both building services above and the occupied space below*.

Meeting AS/NZS 2785:2020 and designed to satisfy the loading requirements of AS 1170.4, the Kwikloc® Aquatic ceiling system is ideal for aquatic centres, hydrotherapy pools, MRI rooms, coastal buildings and other environments exposed to moisture, humidity or corrosive conditions.

*When paired with selected ceiling tiles

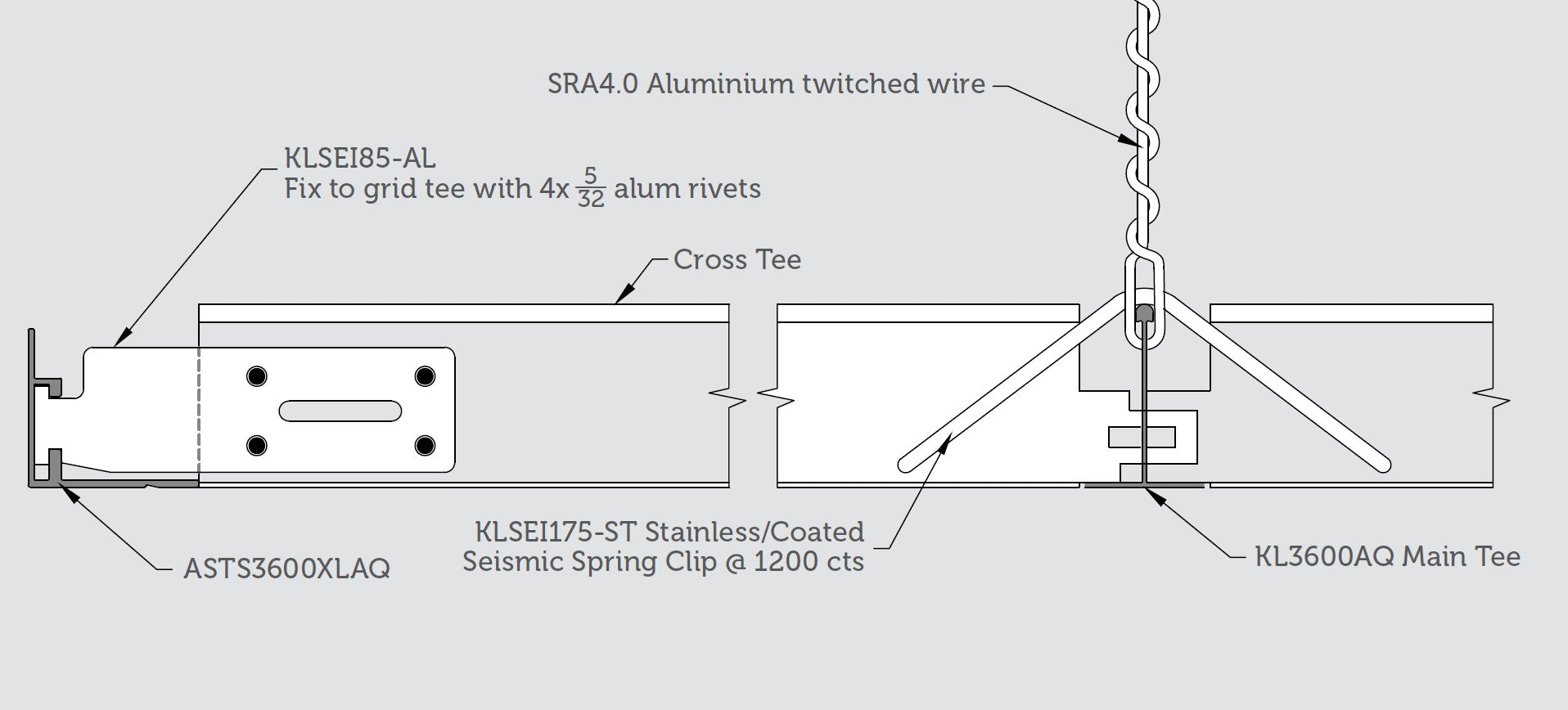

Kwikloc® Aquatic Ceiling Grid Components


 Part Number Description Length Pieces / Pack
KL3600AQ Kwikloc® Aquatic Main Tee 3600 20
KL1200AQ Kwikloc® Aquatic 1200 Cross Tee 1200 60
KL600AQ Kwikloc® Aquatic 600 Cross Tee 600 60


Wall Angles & Bulkhead


 Part Number Description Length Pieces / Pack
AST3600AQ Kwikloc® Aquatic Standard Wall Angle 3600 10
ASL3600AQ Kwikloc® Aquatic Shadowline Wall Angle 3600 10
ASTS3600XLAQ Kwikloc® Aquatic Seismic Wall Angle 32mm End Trim 3600 10


Accessories


 Part Number Description Length Pieces / Pack
KL100-AL Kwikloc® Aquatic Wall Angle Bracket
100
KLSEI85-AL Kwikloc® Aquatic Seismic Wall Angle Bracket
100
KLSEI85-SL-AL Kwikloc® Aquatic Seismic Wall Angle Slotted Bracket 100
A90A Right Angle Bracket Aluminium 100
SRA4.0 4mm Aluminium Wire 50
VFA3 Aluminium Purlin Clip Assembly 100
KLSEI175-ST Kwikloc®Coated Stainless Seismic Spring Clip


Ready to Specify Kwikloc® Aquatic for your next project?

Access specification tools or contact our Project team

Specify Now

Features of the Kwikloc® Aquatic System

Kwikloc® Aquatic Ceiling Systems are purpose-engineered for harsh corrosive environments, whilst maintaining it's stunning design features and high quality throughout the duration of its lifetime.

Featuring an all-aluminium suspension grid, the system delivers a clean, modular ceiling solution designed to allow spanning across large areas with minimal bracing requirements.

  • All aluminium construction: Lightweight, non-ferrous aluminium grid resists corrosion, rust and dimensional movement, providing long-term durability in high-moisture and chemically aggressive environments.
  • Marine-grade components: Marine-grade stainless steel fixings and purpose-designed suspension components enhance corrosion resistance and ensure reliable performance throughout the system's service life.
  • Built for aquatic environments: Designed specifically for indoor pools and humid spaces, the system supports RH100 ceiling tiles, helping maintain appearance, acoustic performance and structural integrity where conventional ceiling systems can deteriorate.
  • Hygienic ceiling design: Closely nested ceiling tiles create a clean, even surface that helps minimise contaminant transfer, protecting building services above and the occupied space below while delivering a high-quality architectural finish.

Studform also offers specialist design support, drawing on decades of experience coordinating ceiling systems, lighting and building services to help deliver compliant, efficient and buildable project outcomes.

Specifying the Kwikloc® Aquatic on your next project?

Download the full technical brochure
